According to the manufacturer's recommendation, the coolant should be replaced after two years of operation or after 60 thousand kilometers, whichever comes first

If the coolant has changed color to red, replace it, as such a change indicates that inhibitory additives have developed and the coolant has become aggressive towards parts of the cooling system.

You will need: a container for the drained liquid, a funnel.

Replacing the coolant of a Gazelle car with a ZMZ-402 engine

Put the car on a horizontal platform.

Gazelle engine coolant replacementGazelle engine coolant replacement

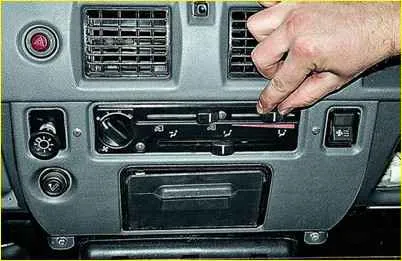

Open the heater valve with the control knob on the instrument panel.

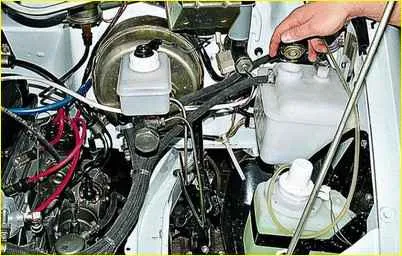

Open the cover of the expansion tank.

Gazelle car engine coolant changeGazelle engine coolant replacement

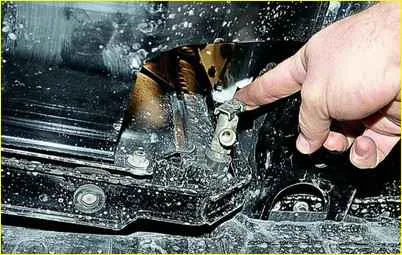

If necessary, putting a hose of a suitable size on the radiator drain valve, open the valve and drain the liquid into a container with a volume of at least 10 liters.

Similarly, we drain the liquid from the cylinder block.

Gazelle car engine coolant changeGazelle engine coolant replacement

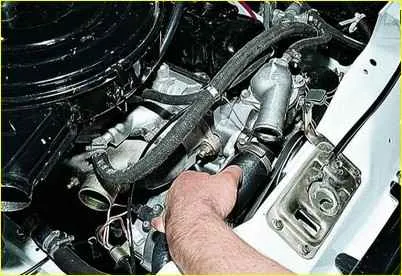

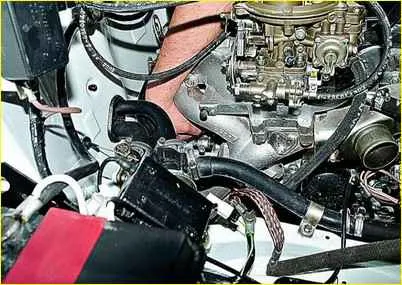

For ease of access to the heating system hose, loosen the clamp and remove the upper radiator hose from the thermostat cover pipe.

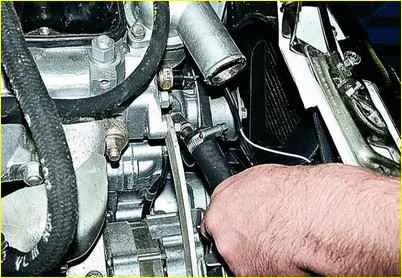

We loosen the clamp and remove the heating system hose from the pump nozzle (on the right side of the engine) and, directing it into the container, drain the coolant

Gazelle car engine coolant changeGazelle engine coolant replacement

For the convenience of work, having unscrewed five self-tapping screws, we remove the hose cover on the floor of the driver's cab.

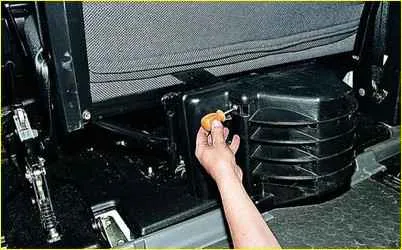

We unscrew the two screws securing the auxiliary heater casing and remove the casing.

Gazelle engine coolant replacementGazelle engine coolant replacement

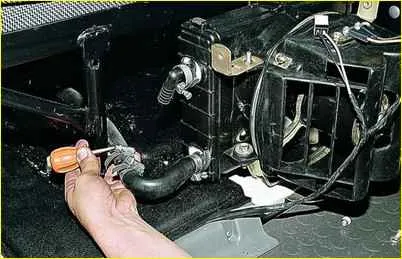

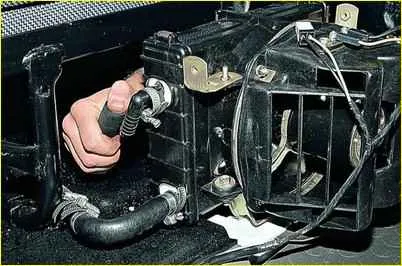

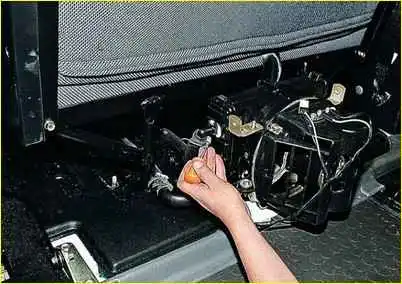

Using a slotted screwdriver, we loosen the clamp of the upper pipe of the radiator of the additional heater.

Remove the hose by pinching the hole with your finger

Gazelle car engine coolant changeGazelle engine coolant replacement

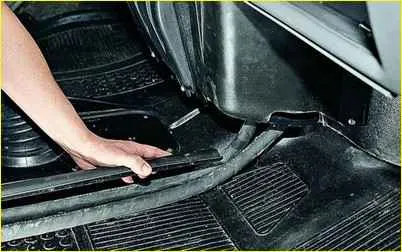

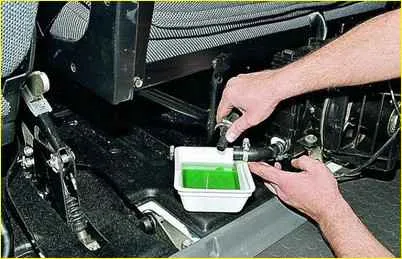

Pull out the hose from under the seat and drain the liquid into a container

Similarly, remove the lower hose from the heater radiator pipe

Drain the fluid from the auxiliary heater radiator.

Gazelle car engine coolant change

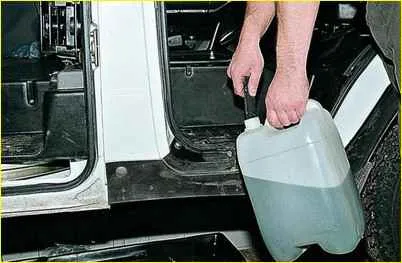

Having connected all the hoses, fill the system with fresh coolant.

Having started the engine, we make sure that there are no air pockets in the system and the engine overheats.

If there is an additional heater in the car, after starting the engine, turn on the electric pump.

Replacing the coolant of a Gazelle car with engine atelier ZMZ-406

All work should be carried out only on a cold engine.

Unscrew the plug of the expansion tank and open the heater valve.

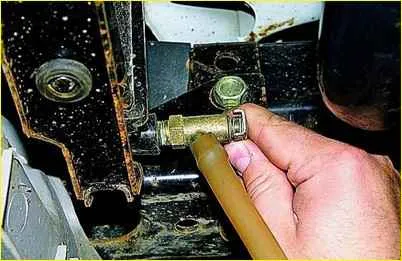

We put a hose of suitable diameter on the drain tap pipe.

Gazelle engine coolant replacementGazelle engine coolant replacement

Having lowered the hose of the radiator drain valve into a container (with a volume of at least 10 liters), open the valve and drain the coolant.

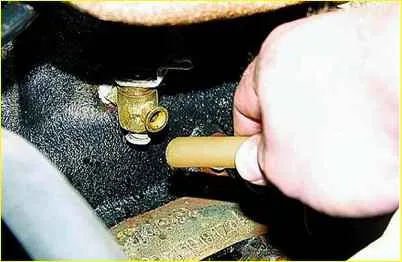

Remove the hose from the radiator tap

Gazelle engine coolant replacementGazelle engine coolant replacement

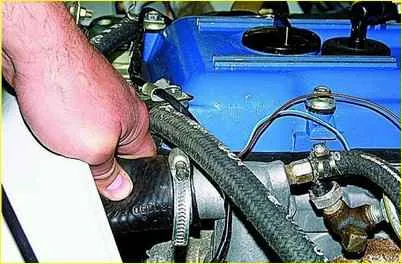

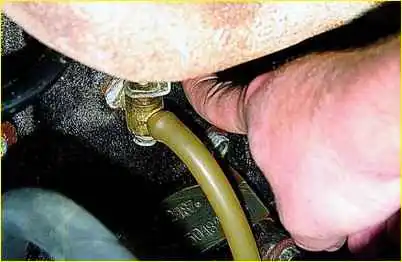

Putting on the tap located on the left side of the engine, we drain the remaining coolant from the cylinder block

Close the drain taps

Fill the system with water through the expansion tank.

Gazelle car engine coolant replacement

Start the engine for a few minutes.

Drain the water and, filling it with fresh water, flush the cooling system again.

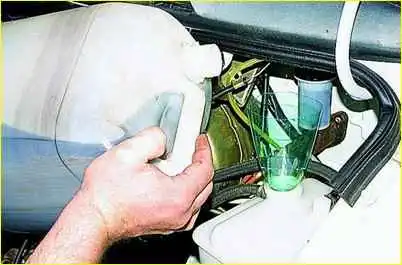

In order not to spill liquid, insert a funnel into the expansion tank and slowly, in a continuous stream, pour coolant into it.
