Place the vehicle in a work area, apply the parking brake, and turn off the ignition.

Lift the hood, disconnect the ground wire from the battery.

Instrument cluster: 1 - self-tapping screw; 2 - instrument panel shield; 3 - instrument cluster

Unscrew the two screws 1, Figure 1, self-tapping fastenings of the instrument panel panel 2 (use: - T20 bit, screwdriver).

Overcoming the resistance of the clamps, pull the upper part of the instrument panel panel 2 towards you and remove the panel.

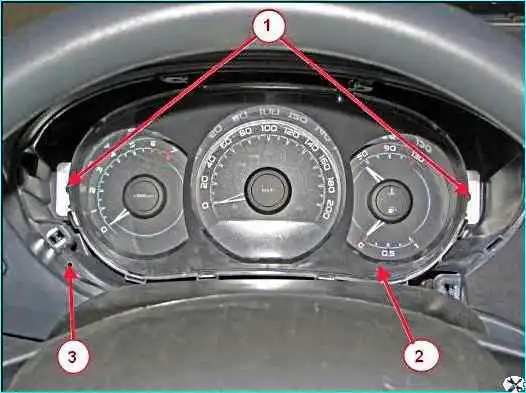

Removing the instrument cluster: 1 - fastening screw; 2 - instrument cluster; 3 - instrument panel

Unscrew the two screws 1, Fig. 2, self-tapping fastening the instrument cluster 2 to the instrument panel 3 (use: - T20 bit, screwdriver).

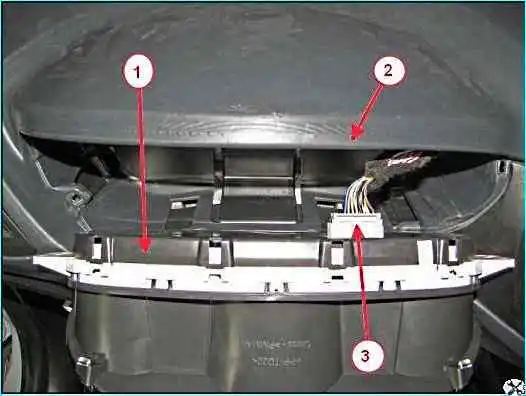

Instrument panel wiring harness block: 1 - instrument cluster; 2 - instrument panel; 3 - connector of the instrument panel wiring harness to the instrument cluster

Remove the combination 1, figure 3, of the instruments from the instrument panel 2, disconnect connector 3 of the instrument panel wiring harness from the instrument cluster and remove the instrument cluster.

Installation:

Installation of the instrument cluster is performed in the reverse order of removal.
