Remove the control unit to replace the backlight lamp or to replace the unit itself
You will need tools: plastic mounting spatula, screwdriver set, Torx T20 key
Prepare the car and disconnect the negative battery terminal

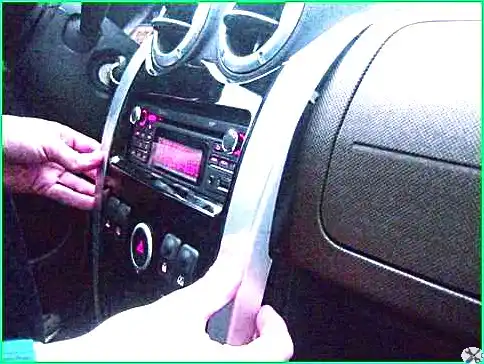

Remove the center console insert, described in the article - How to remove the Lada Largus instrument panel

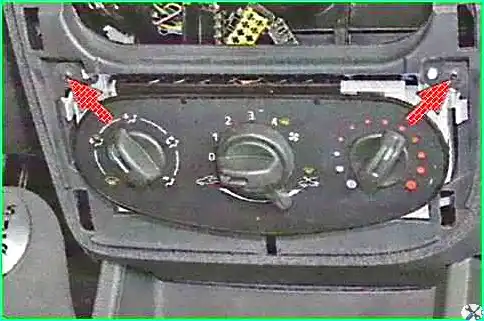

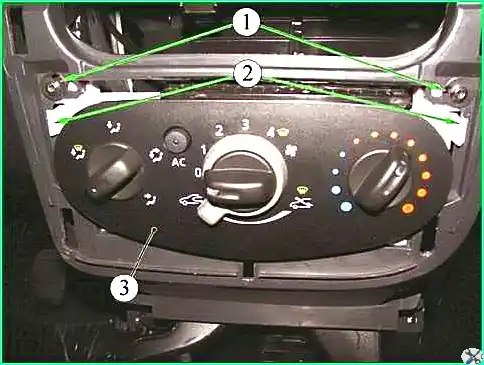

Unscrew the two screws securing the control unit to the instrument panel

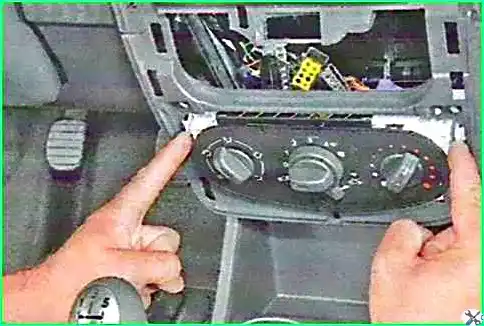

Squeeze the two holders
And slide the unit inside the panel. Rotate the block so that the inner side of the block is at the top

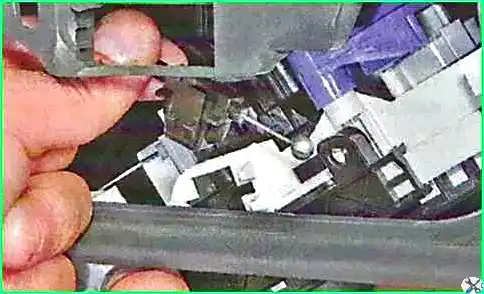

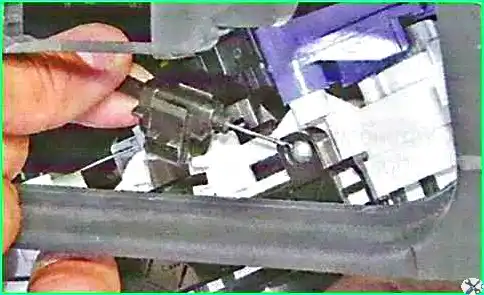

Squeeze the clamps and disconnect the tip of the recirculation drive cable sheath (black) from the block holder

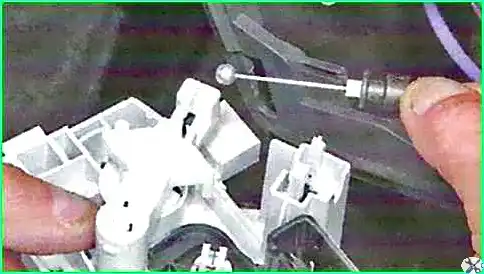

Disconnect the recirculation drive tip from the slider

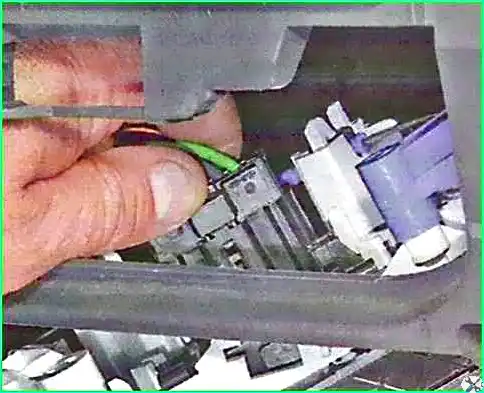

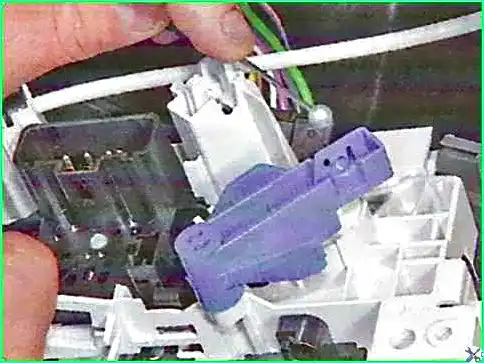

Press the retainer and disconnect the wiring block from the unit

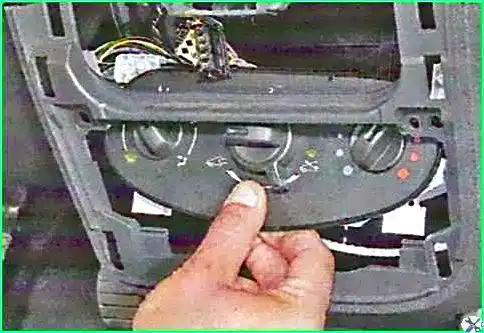

Remove the control unit from the socket in the instrument panel

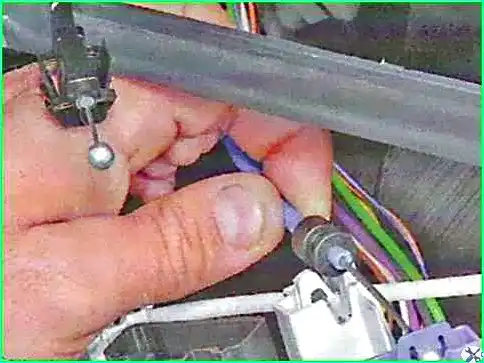

Remove the tip of the cable sheath (blue) of the temperature regulator from the holder on the unit
And disconnect the cable tip from the lever
In the same way, disconnect the air distribution flap drive cable (with a white sheath) and remove the unit
If you need to replace the lamps in the unit, you need to turn the socket of the corresponding lamp counterclockwise and remove it from the socket
We install the control unit of the heating, air conditioning and ventilation system in the reverse order
