Removal of headlights, repeaters and taillights was discussed in the relevant articles
Removal of additional brake light

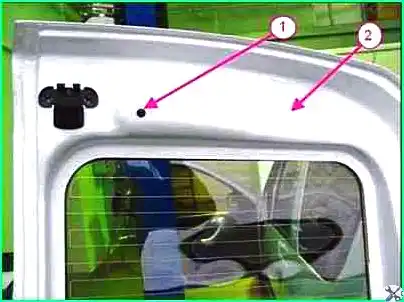

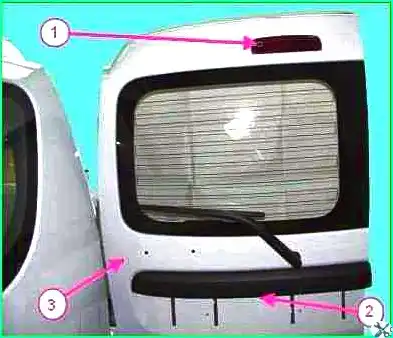

An additional brake light is installed on the rear left door.

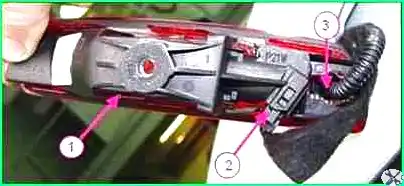

Using a screwdriver with a Torx30 bit, unscrew screw 1 securing the brake light.

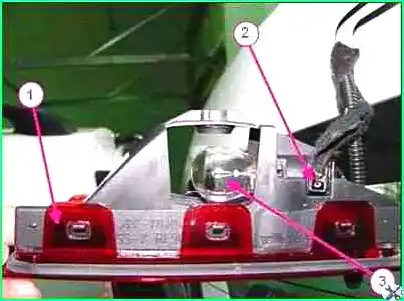

Remove the additional signal
Disconnect block 2 of the additional brake signal wiring harness
Use a flat-head screwdriver to press the jet holders and disconnect the rear window washer jet
To replace the bulb, turn it a quarter turn counterclockwise and remove the bulb from the housing.
The P21W 21W bulb for the additional signal is used.
Removing the trunk light
Using a flat-head screwdriver, disconnect the 2 trunk light from the car body
Disconnect the rear wiring harness connector from the trunk light connector and remove the trunk light.
To replace the bulb, press the contacts and pull the bulb towards you.
Installation
Install the additional brake light bulb by turning it clockwise.
Install the additional brake light and trunk light in the reverse order of removal.
Removing and installing the license plate light
Prepare the car and disconnect the negative battery terminal.
The license plate light is built into the outer decorative trim loading left rear door.

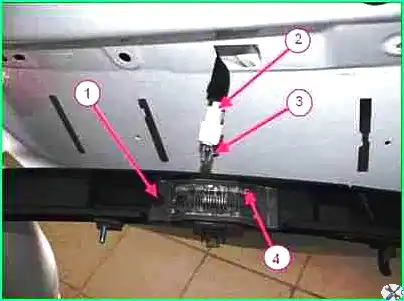

Using a TorxT20 screwdriver, unscrew screw 1, securing diffuser 4 of the license plate light to the trim panel of the left rear loading door.
Disengage the lock and remove the license plate light from the socket in the trim panel of the left rear loading door of the vehicle.
Disconnect connector 2 of the wiring harness from the license plate light 3.
Turn and pull the lamp towards you.
Installation
Install the license plate light in the reverse order of removal.
Removing the interior light and replacing the lamp
Place the vehicle in the work place, apply the parking brake, turn off the ignition.
Lift the hood, disconnect the battery ground terminal.

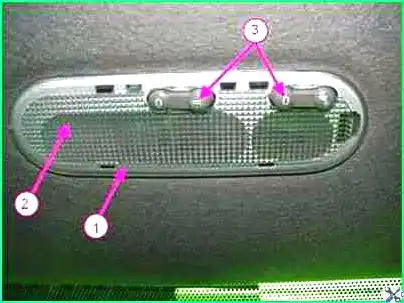

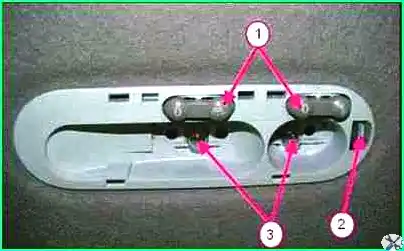

Interior light
Open the front door of the car.
Flat from remove diffuser 2 with a twist
Press the lock 2, and remove the interior light from the car roof trim.

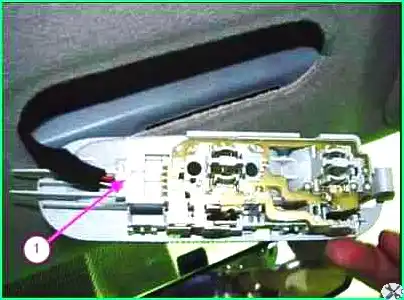

Disconnect connector 1, instrument panel wiring harness from the interior light
To replace lamp 3, Figure 2, pull it towards you and remove it from housing 1, Figure 1, of the light interior
Lamp used for W5W ceiling light

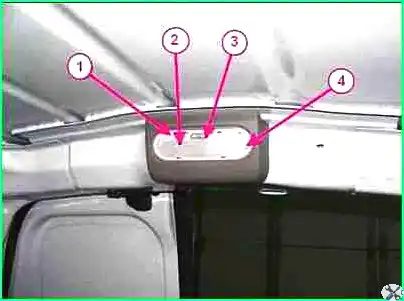

Cargo compartment light (for van)
Use a flat-head screwdriver to remove diffuser 2.
Press retainer 4 and remove the cargo compartment light from the vehicle body trim.
Disconnect the wiring harness connector from the cargo compartment light and remove the interior light.
To replace the bulb, pull it towards you and remove it from the cargo compartment light housing.
Use only a certified W5W bulb for replacement
Install the bulb and interior light and cargo compartment light in the reverse order of removal.

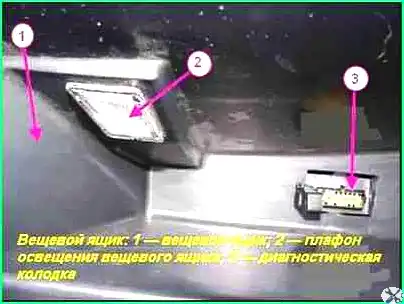

Removing the glove compartment light

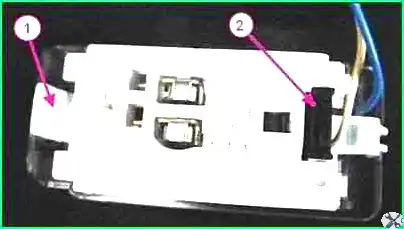

Release lock 1, figure 2, and remove lampshade 2, figure 1, of glove compartment lighting 1.
Disconnect connector 2, Figure 2, of the instrument cluster wiring harness from the glove compartment light.
To replace the glove compartment light bulb, remove it and replace the burnt-out bulb.
Install the bulb and glove compartment light in the reverse order of removal.
Use only a certified C5W bulb for replacement
