The ZIL-5301 is equipped with steel disk wheels of size 6.5J-16H2.
Tires – pneumatic tubeless, radial, size 225/75R16C
The wheels are attached to the hubs with six M18X1.5 bolts.
The rear wheels are doubled

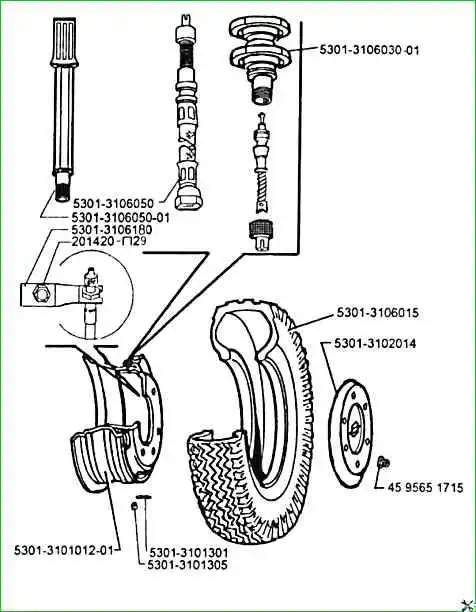

The figure shows the installation locations of the parts and their designations according to the spare parts catalog.
We look at the figure and the table shows the decoding of the part.
ZIL-5301 car wheel parts according to the catalog
Part number Part name
- 201420-П29 Bolt
- 250608-П29 Nut
- 45 9565 1715 Nut
- 5301-3101011 Wheel with tire, valve and weights in assembly
- 5301-3101012-01 Wheel 165Jх406
- 5301-3101301 Wheel weight balancing
- 5301-3101302 Wheel balancing weight
- 5301-3101303 Wheel balancing weight
- 5301-3101304 Wheel balancing weight
- 5301-3101305 Wheel balancing weight spring
- 5301-3102014 Wheel cap
- 5301-3106015 Tire 225/75R16C tubeless models I-359, M-203, Ya-439
- 5301-3106030-01 Valve BP-11.3
- 5301-3106050 Extension valve
- 5301-3106050-01 Valve extension
- 5301-3106180 Extension clamp
