The rear lights of the ZIL-5301 vehicle are combined, consisting of three sections (brake light, side light and direction indicators).
The fog light and reversing light are separate. Two license plate lights are mounted on the sides of the number.

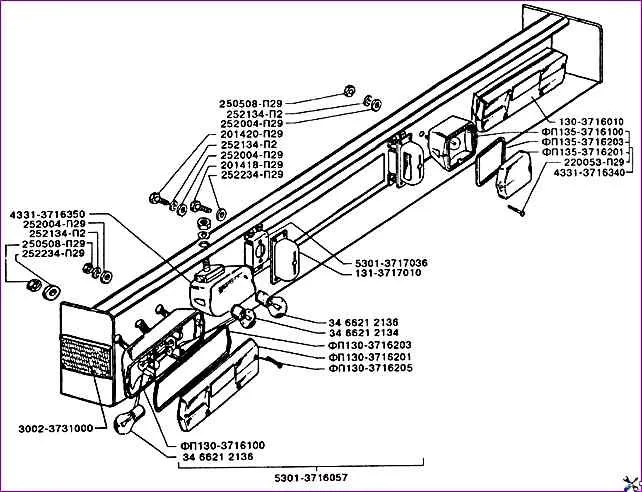

The figure shows the installation locations of the parts and their designations according to the spare parts catalog.
We look at the figure and the table shows the decoding of the part.
ZIL-5301 rear light parts according to the catalog
Part number - Part name
- 130-3716010 - Right rear light FP130-B or 357.3716 in assembly
- 130-3716010-01 - Right rear light FP130-B or 356.3716 in assembly
- 130-3716011-10 - Left rear light in assembly
- 130-3724047 - Bushing
- 131-3717010 - License plate light type FP134 assembled
- 131-3723103 - Socket bracket
- 131-3723111 - Protective sleeve for portable lamp socket
- 133GYA-3715020 - Socket for portable lamp PS400
- 201418-P29 - Bolt
- 201420-P29 - Bolt
- 250053-P29 - Bolt
- 250508-P29 - Nut
- 25200-P29 - Washer
- 252004-P29 - Washer
- 252134-P2 - Spring washer
- 252234-П29 - Toothed washer
- 3002-3731000 - Reflector assembly
- 308399-П29 - Clamp
- 3466212134 - Lamp
- 3466212136 - Lamp
- 431410-3723043 - 4-terminal connection panel assembly
- 4331-3716340 - Reversing light assembly FP135-V
- 4331-3716350 - Rear fog light 2402.37 16 in assembly
- 5301-3716057 - Left rear light assembly FP130 or 357.3716
- 5301-3717036 - License plate light mounting bracket with nuts assembly
- FP130-3716100 - Left housing assembly
- FP130-3716100-B - Right housing assembly
- FP130-3716200 - Left diffuser assembly
- FP130-3716200-B - Right diffuser assembly
- FP130-3716201 - Diffuser left
- FP130-3716201-B - Right diffuser assembly
- FP130-3716203 - Gasket
- FP130-3716205 - Diffuser mounting screw
- FP135-3716100 - Housing assembly
- FP135-3716201 - Diffuser
- FP135-3716203 - Gasket
