We remove the unit to replace the failed damper drive rods and backlight bulbs
We disconnect the negative battery terminal.

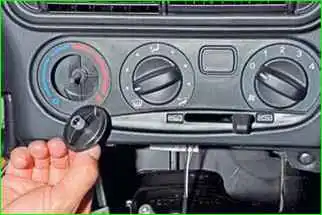

We remove the air temperature control knob by pulling it.
We also remove the air flow distribution control knob and the fan mode switch.
Pry off the plastic handle with a screwdriver
Removing the air recirculation control lever handle

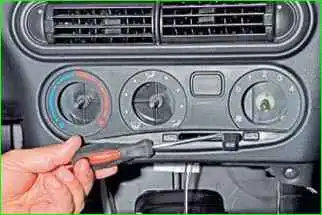

Pry off the unit trim with a screwdriver

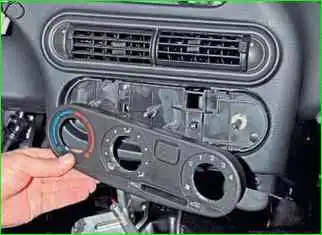

Remove the trim and unscrew the two screws securing the unit with a Phillips screwdriver

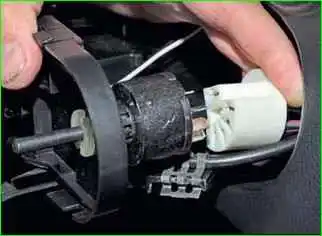

We remove the unit from the instrument panel and disconnect the wiring block from the fan mode switch

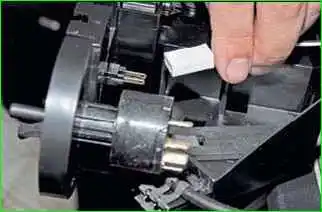

We disconnect the wiring block from the unit backlight lamp socket

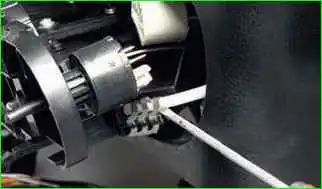

Use a screwdriver to pry off the bracket securing the recirculation flap drive rod casing.
Use a screwdriver to pry off the rod from the drive lever recirculation
Disconnect the recirculation flap drive rod.

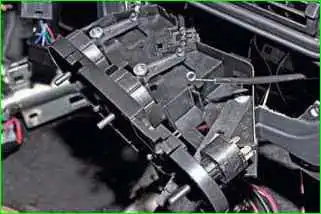

Also disconnect the rods from the temperature regulator and air flow distribution.
To replace the backlight lamp, use pliers to turn the lamp holder counterclockwise and remove the holder with the lamp from the unit
Remove the lamp from the holder
Install the lamp and unit in the reverse order.
