The oil in the transfer case must be replaced every 45,000 km
You will need: a 12mm hexagon, a syringe for filling transmission units, a container for used oil.
We carry out the work on an inspection ditch or a lift.
Before changing the oil, it is necessary to warm up the transmission by driving the car for at least 10 km.
The transfer case uses gear oils with a quality level according to API GL-5 and a viscosity of 75W-90
Transfer case housing capacity 0.75 liters

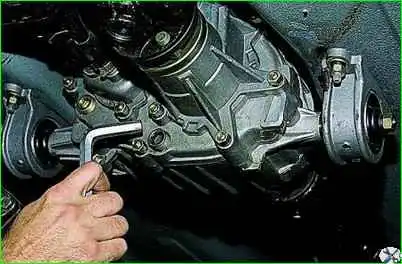

Use a 12mm hex key to unscrew the plug

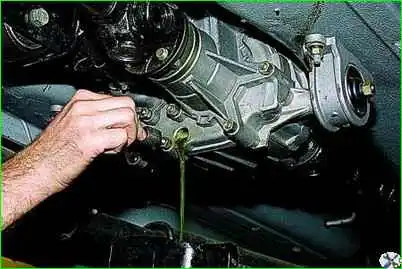

Drain the oil.

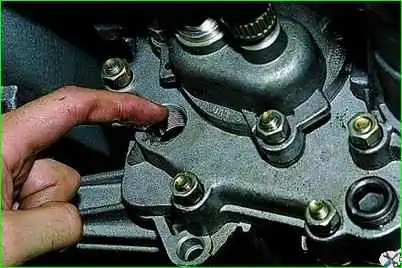

Having cleaned the magnet, screw up the drain plug

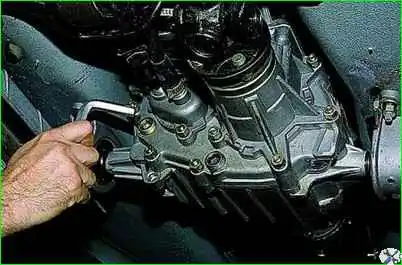

Use a 12mm hex wrench to unscrew the filler plug

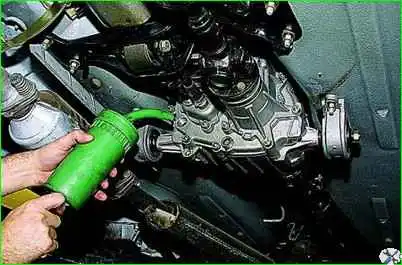

Fill the oil with a syringe
Check the oil level - it should reach the lower edge of the filler hole

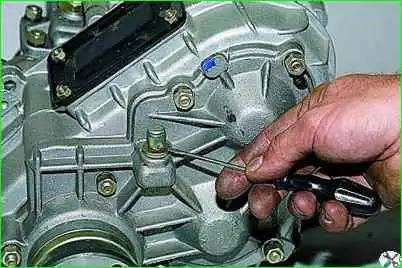

We clean the breather located on the side of the rear propeller shaft (shown on the removed transfer case) from dirt.
