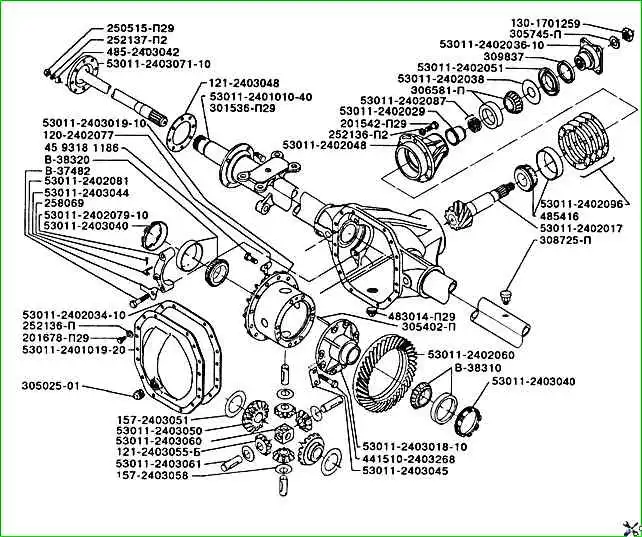

The figure shows the installation locations of the parts and their designations according to the spare parts catalog.
We look at the figure and the table shows the decoding of the part.
ZIL-5301 rear axle half-shaft and main gear parts according to the catalog
Part number - Part name
- 120-2402077 - Differential stopper
- 121-2403048 - Half-shaft gasket
- 121-2403055-B - Differential satellite
- 130-1701259 - Secondary shaft flange fastening nut
- 153011-2402038 - Washer
- 157-2403051 - Washer support
- 157-2403058 - Satellite support washer
- 201542-П29 - Bolt
- 201678-П29 - Bolt
- 250515-П29 - Nut
- 252136-П2 - Spring washer
- 252137-П2 - Spring washer
- 258069 - Cotter pin
- 301536-П29 - Bolt
- 305025-01 - Plug
- 305402-П - Pin
- 305745-П - Washer
- 306581-П - Pinion Bearing (6-7809U)
- 308725-P - Breather
- 309837 - Pinion Seal
- 441510-2403268 - Bolt
- 45 9318 1186 - Bolt
- 483014-P29 - Plug
- 485-2403042 - Expanding Sleeve
- 485416 - Bearing
- 53011-2400010-60 - Rear Axle Assy
- 53011-2401010-40 - Rear Axle Housing in assembly
- 53011-2401019-20 - Rear axle housing cover
- 53011-2402012-10 - Rear axle drive pinion assembly
- 53011-2402017 - Rear axle drive pinion
- 53011-2402020-10 - Bevel gears (set)
- 53011-2402029 - Expansion sleeve
- 53011-2402034-10 - Gasket
- 53011-2402036-10 - Drive pinion flange with mud deflector assembly
- 53011-2402048 - Bearing cup shower gear assembly
- 53011-2402050 - Housing with cuff assembly
- 53011-2402051 - Cuff housing
- 53011-2402060 - Driven gear
- 53011-2402079-10 - Bearing cover
- 53011-2402081 - Lock plate
- 53011-2402087 - Adjusting washer thickness 2.65 mm
- 53011-2402088 - Adjusting washer thickness 2.75 mm
- 53011-2402089 - Adjusting washer, thickness 2.85 mm
- 53011-2402090 - Adjusting washer, thickness 2.95 mm
- 53011-2402091 - Adjusting washer, thickness 3.05 mm
- 53011-2402092 - Adjusting washer, thickness 3.15 mm
- 53011-2402096 - Cup gasket, thickness 1 mm
- 53011-2402097 - Cup gasket, thickness 0.5 mm
- 53011-2402098 - Cup gasket, thickness 0.2mm
- 53011-2402099 - Cup gasket thickness 0.1mm
- 53011-2402100 - Cup gasket thickness 0.05 mm
- 53011-2403010-10 - Rear axle differential assembly
- 53011-2403018-10 - Right differential cup
- 53011-2403019-10 - Left differential cup
- 53011-2403020-10 - Differential cups (set)
- 53011-2403040 - Differential bearing nut
- 53011-2403044 - Stopper
- 53011-2403045 - Lock plate
- 53011-2403050 - Pinion half shafts
- 53011-2403060 - Crosspiece housing
- 53011-2403061 - Crosspiece pin
- 53011-2403070-20 - Right half shaft
- 53011-2403071-10 - Left half shaft
- B-37482 - Bolt
- B-38310 - Bearing
- B-38320 - Bearing (BO-7214A)
