ZIL-5301 cardan transmission

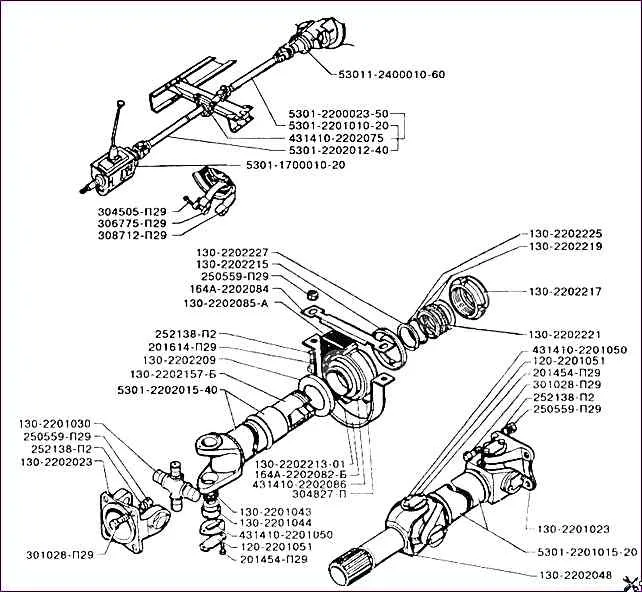

The figure shows the installation locations of the parts and their designations according to the spare parts catalog
We look at the figure and the table shows the decoding of the part
ZIL-5301 cardan transmission parts according to the catalog
No. Part number Part name
- 120-2201051 Lock plate
- 130-2201023 Cardan shaft fork flange
- 130-2201030 Cardan shaft crosspiece
- 130-2201043 Cardan shaft bearing end seal assembly
- 130-2201044 Cardan shaft needle bearing assembly
- 130-2202023 Flange fork
- 130-2202048 Rear axle cardan sliding fork
- 130-2202085-A Intermediate cardan shaft support cushion
- 130-2202157-B Bushing assembly
- 130-2202209 Front reflector
- 130-2202213-01 Expansion bushing
- 130-2202215 Rear reflector
- 130-2202217 Nut
- 130-2202219 Splined bushing oil seal split washer
- 130-2202221 Oil seal ring splined sleeve of the cardan shaft
- 130-2202225 Sleeve of the sliding fork
- 130-2202227 Split washer
- 164A-2202082-B Bracket of the intermediate cardan shaft support
- 164A-2202084 Clamp
- 201454-П29 Bolt
- 201614-П29 Bolt
- 250559-П29 Nut
- 252138-П2 Spring washer
- 301028-П29 Bolt
- 304505-П29 Split pin
- 304827-P Oil can assembly
- 306775-P29 Buckle
- 308712-P29 Tape
- 431410-2201050 Plate
- 431410-2202075 Intermediate support of the propeller shaft
- 431410-2202086 Bearing of the propeller shaft support with cover
- 5301-1700010-20 Gearbox assembly
- 5301-2200023-50 Propeller shafts with intermediate support assembly
- 5301-2201010-20 Rear axle propeller shaft with cardan shaft assembly
- 5301-2201015-20 Rear axle cardan shaft with forks assembly
- 5301-2202012-40 Intermediate cardan shaft with cardan shaft assembly
- 5301-2202015-40 Intermediate cardan shaft
